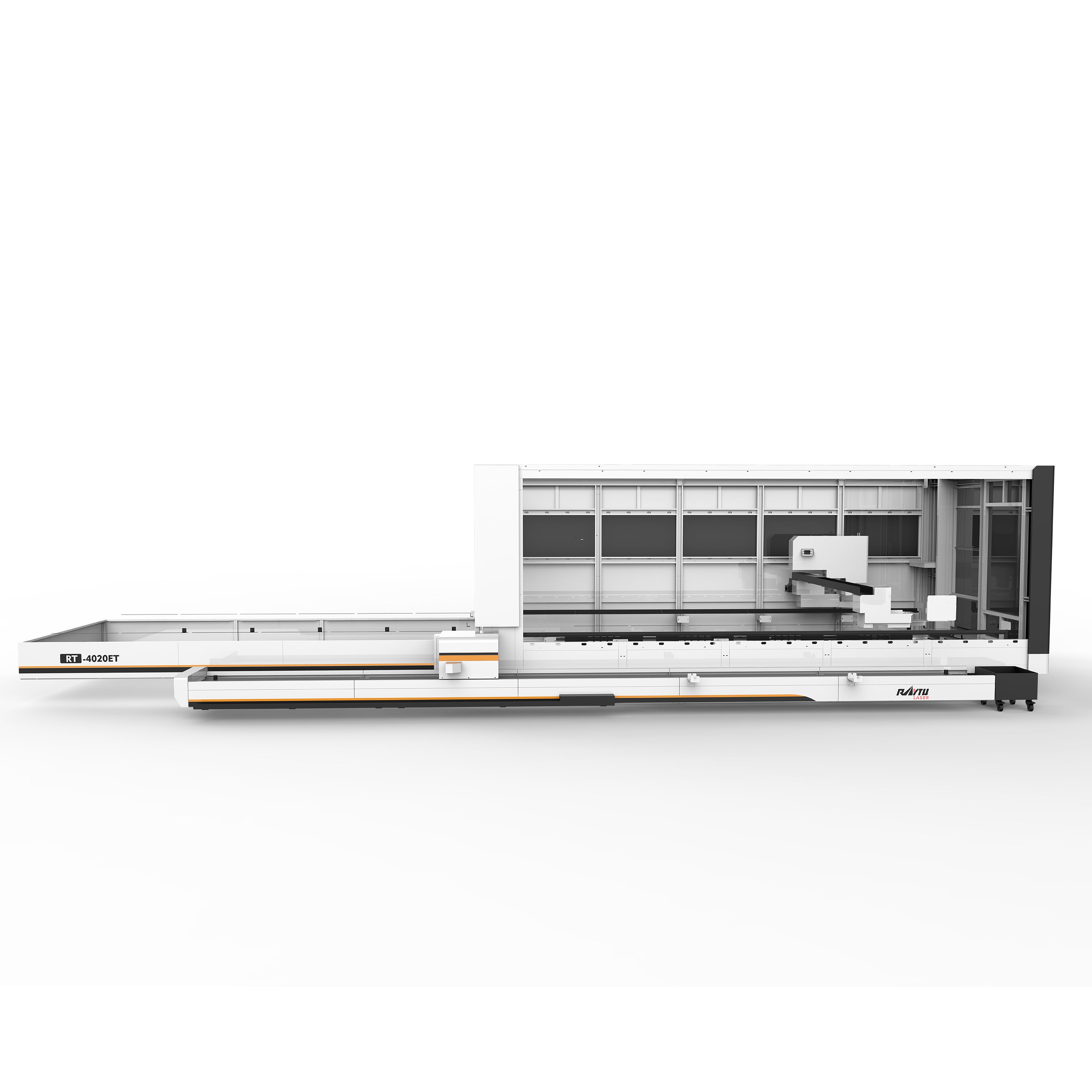

Full Cover Metal Tube And Sheet Fiber Laser Cutting Machine
Raytu GT-Series laser cutting machine boasts an eco-friendly design with a fully protective cover for enhanced safety. With power options ranging from 1000W to 6000W,can cut 3m-6m metal pipes, it features two independent automatic platforms changers, significantly boosting efficiency and reducing downtime. Equipped with safety devices such as door protection switches and a closed sheet metal cover, the G-Series ensures both stability and visibility, delivering exceptional performance with high power and cutting speed.
- Overview
- Technical Parameters
- Cutting Sample
- Related Products

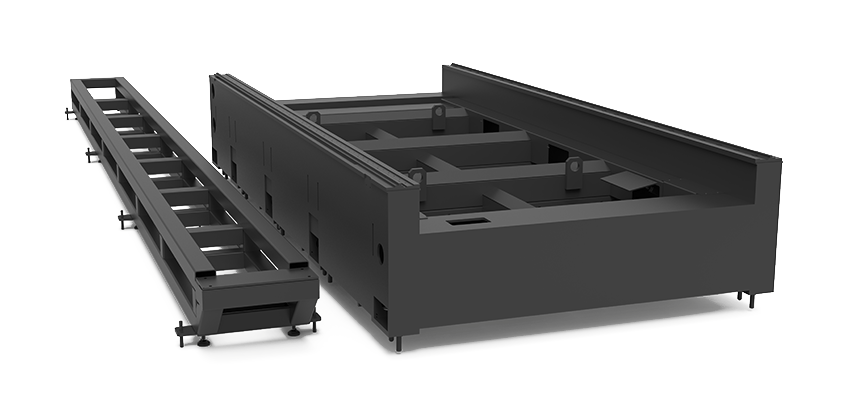

Ultra-durable plate welded machine bed
The bed is welded from ultra-thick carbon steel plates and uses stress annealing technology to ensure the machine's structural stability and long-term high-performance operation.

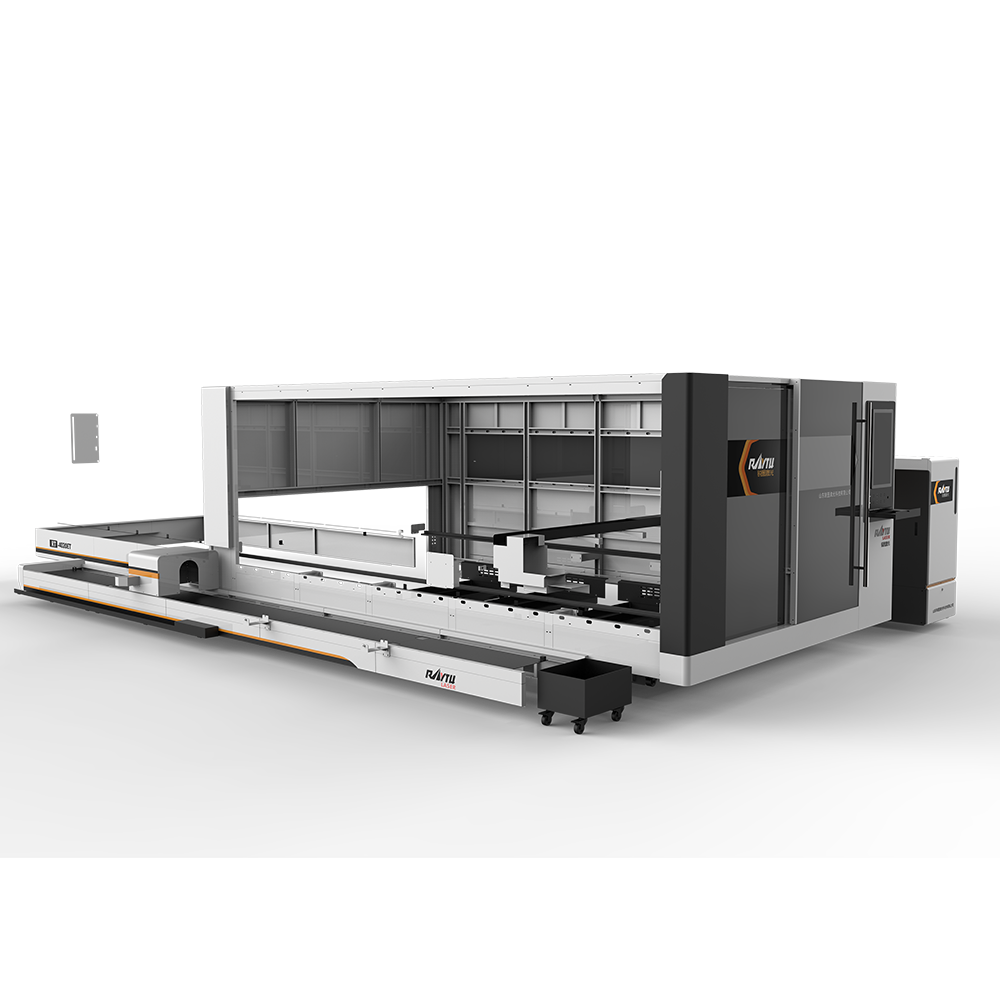

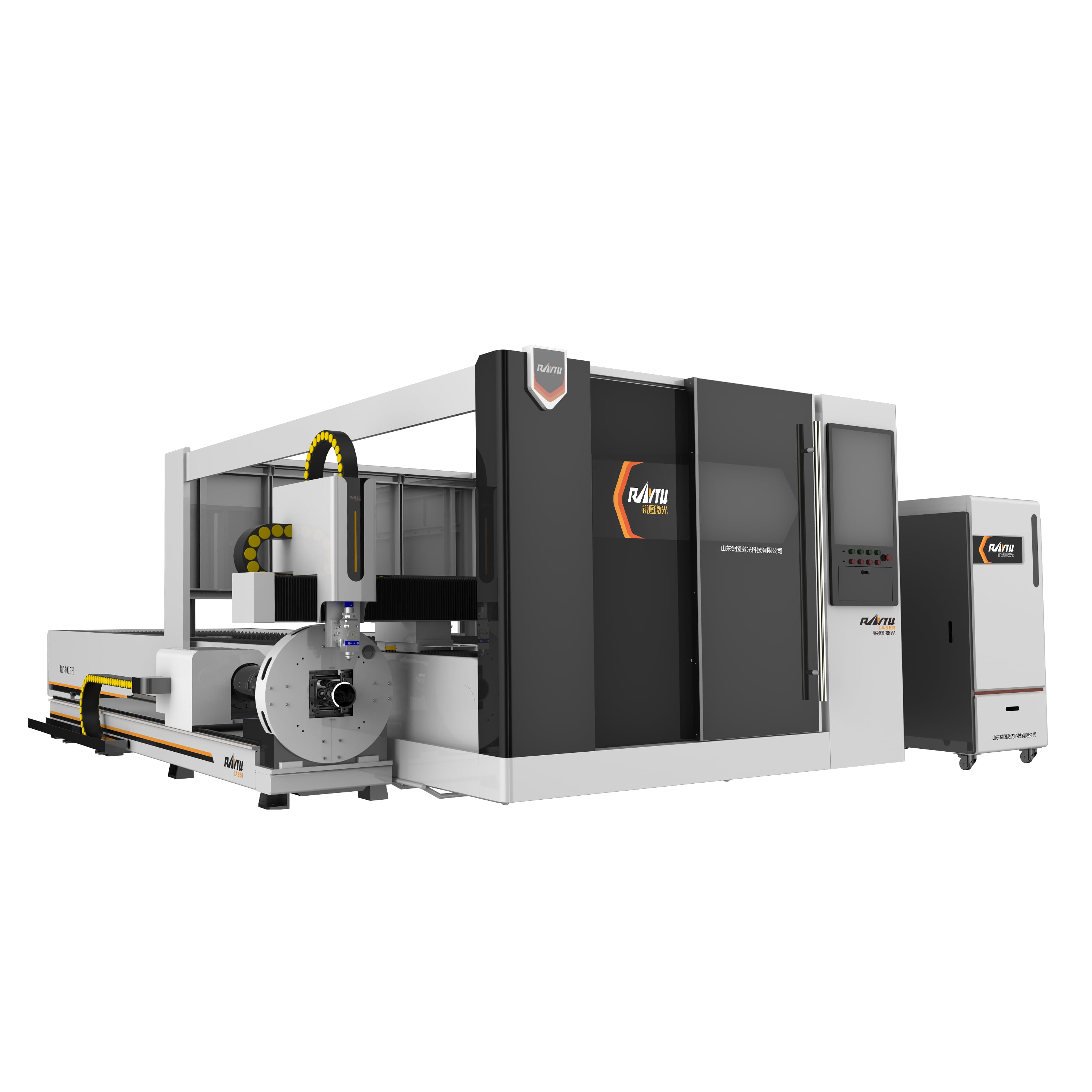

Professional high precision pipe cutting
The combination of cutting pipes and plates takes up little space and can meet a variety of processing needs. The double chuck fixing and extended transmission structure make the machine very stable.

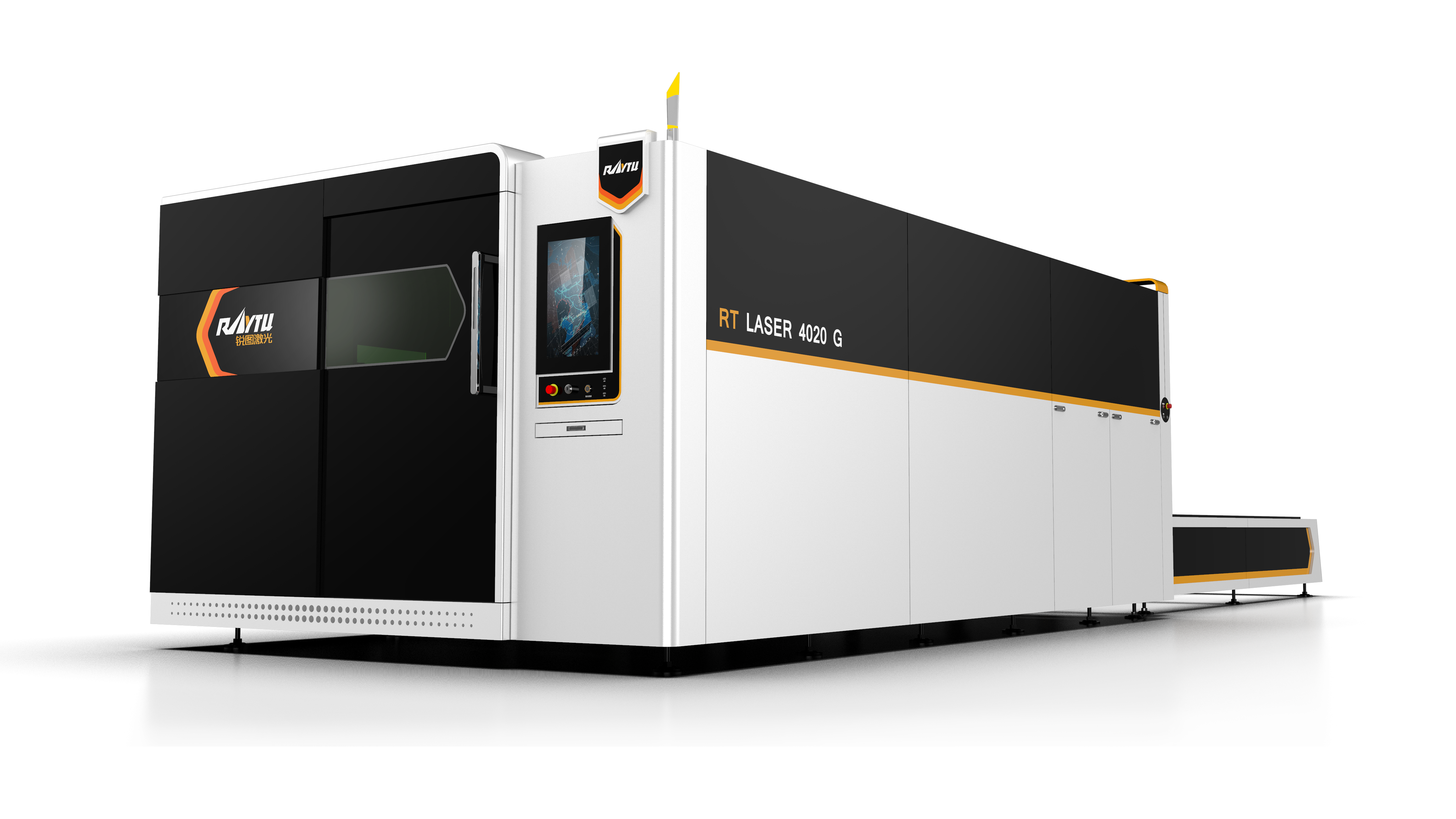

Fully Enclosed sheet and tube integrated design
The fully enclosed protective cover design can protect the operator from being harmed by the laser; the processing process can be monitored in real time; and the zoned smoke exhaust system will be more environmentally friendly.

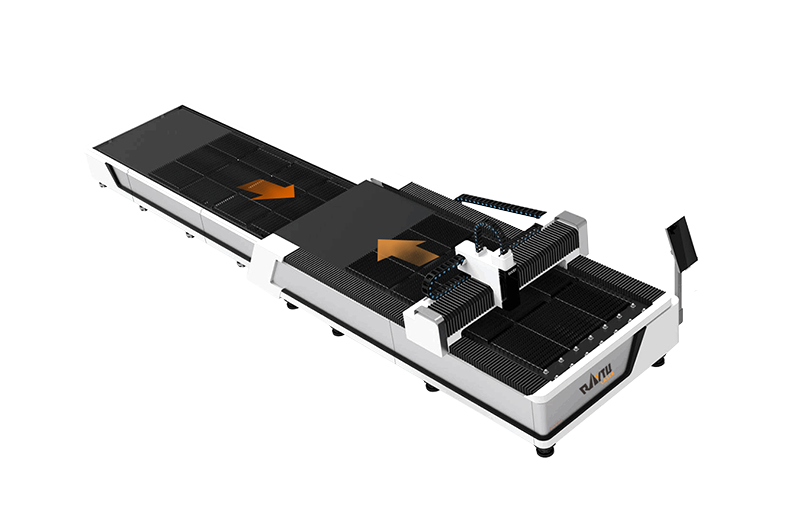

Double exchange platform
The exchange time between the two platforms is only 15S, which can greatly improve the cutting efficiency by 30%.
Technical Parameters
| Working area | 3000*1500mm | 4000*2000mm | 6000*2500mm | 8000*2500mm |
| Laser Power | 1000W-6000W | |||
| Reposition accuracy | 0.02mm | |||
| Max.running speed | 130m/min | |||
| Max.acceleration | 1.5G | |||
| Tube Size Range | φ10-φ225mm, □10- □225mm | |||
