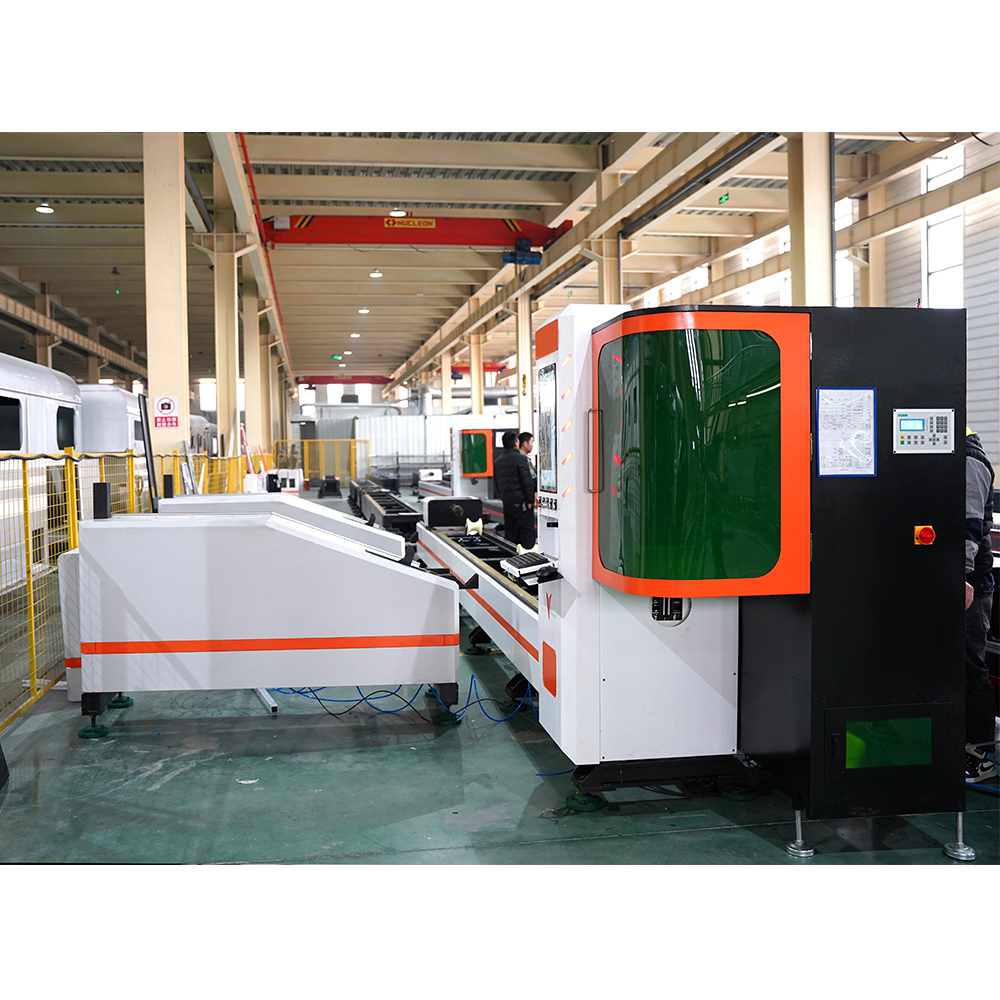

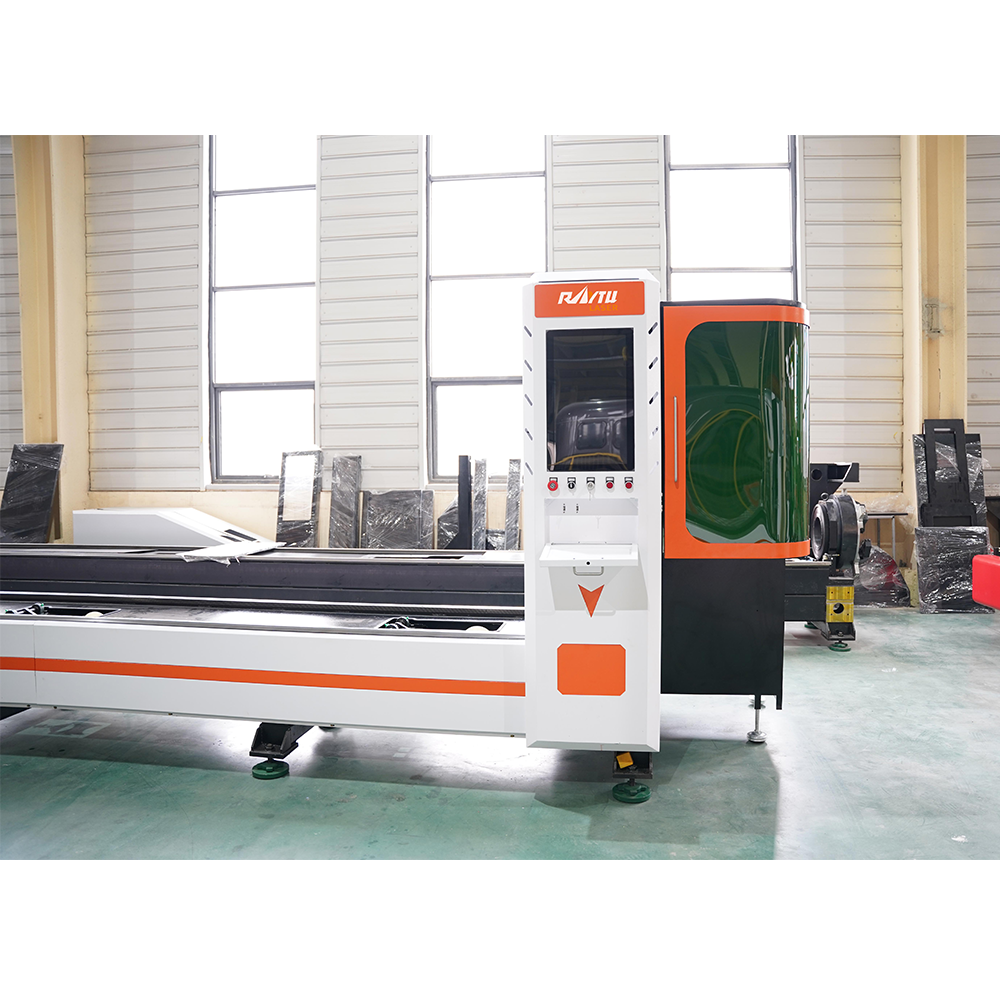

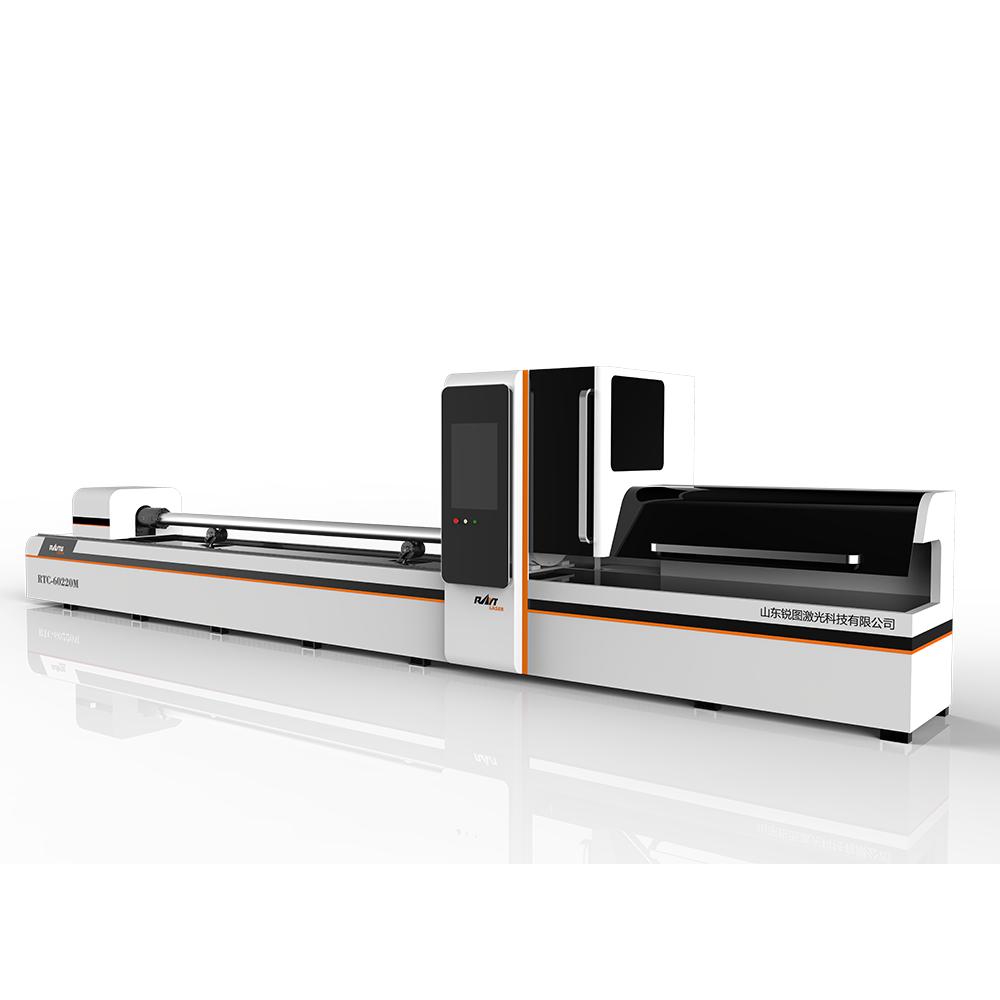

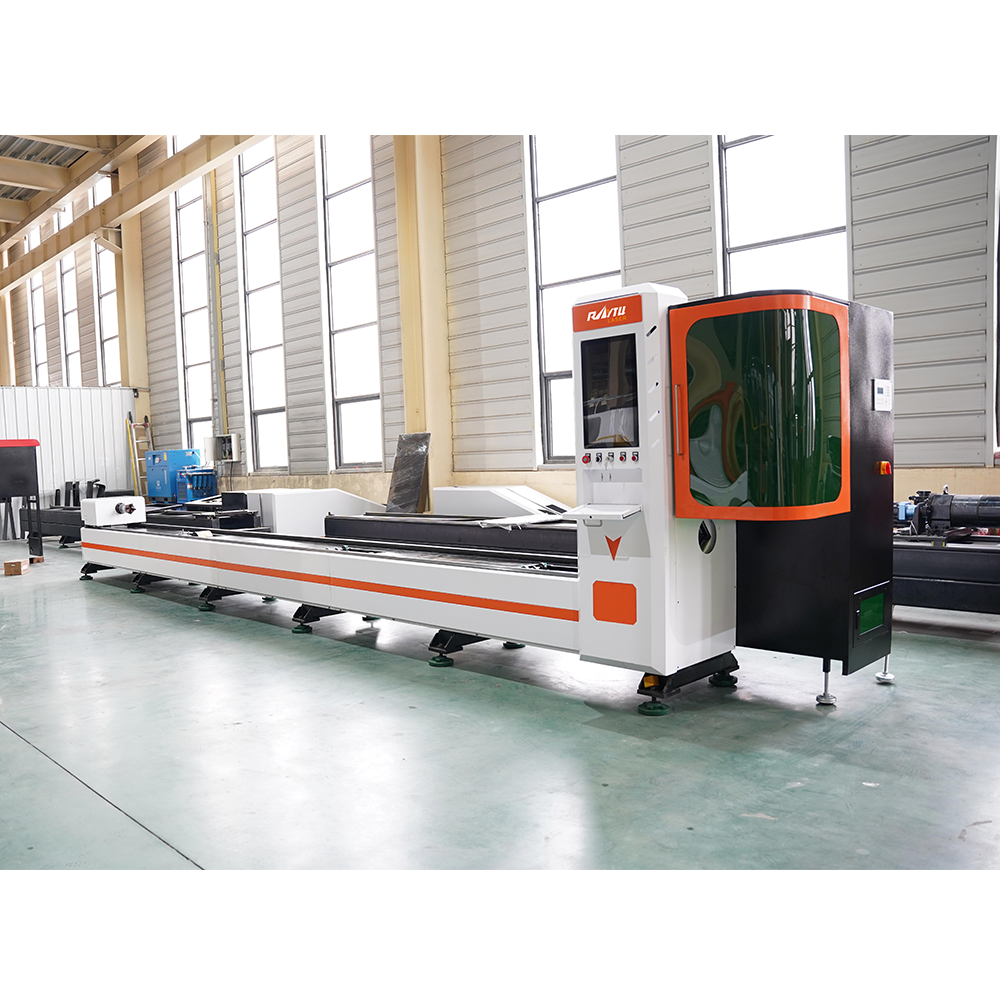

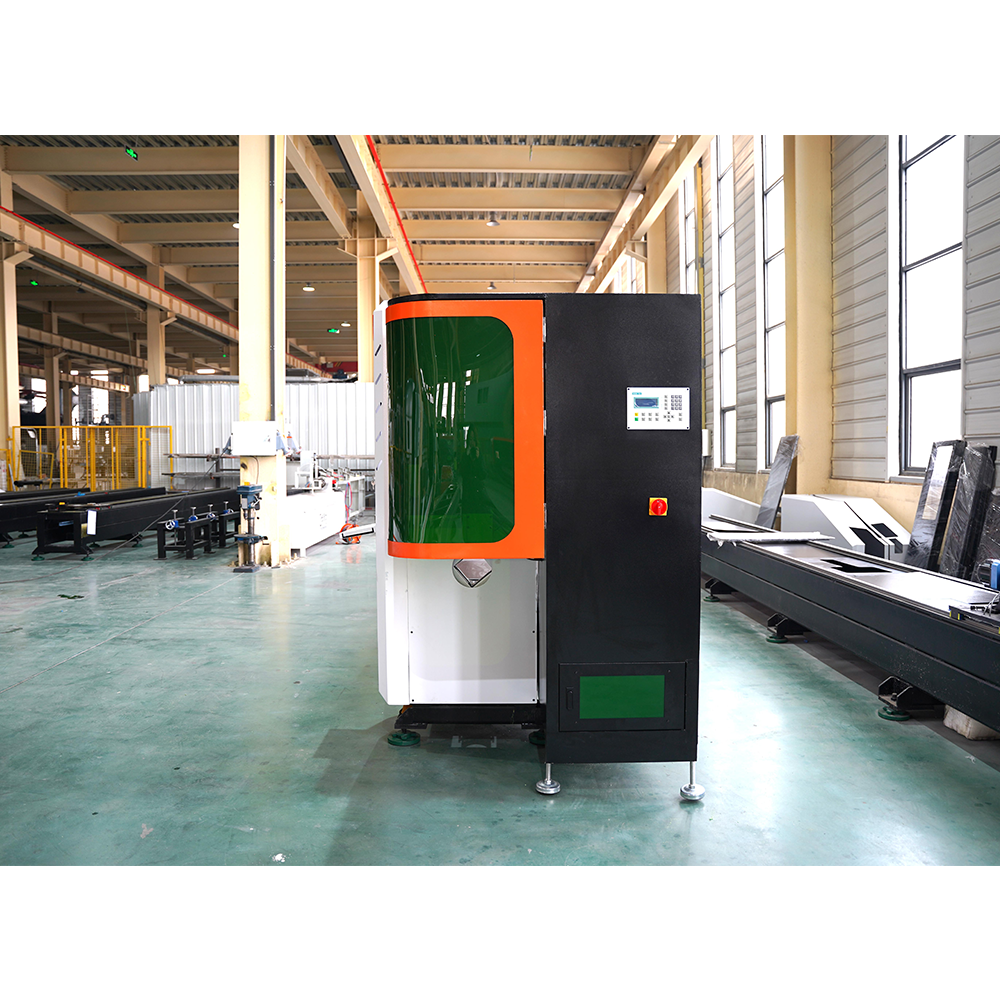

Professional Tube Laser Cutting Machine
Raytu M series tube laser cutting machine is the latest and most intelligent laser tube cutting machine. It is suitable for cutting various types of metal tubes, including square tubes, round tubes, rectangular tubes, etc. It is operated by touch screen and is easy to operate. One person can control multiple machines. With the automatic loading and unloading system, the cutting efficiency is higher, which is suitable for customers with high requirements for mass production. The machine complies with CE and FDA standards, and the entire machine is guaranteed for two years.
- Overview
- Technical Parameters
- Cutting Sample
- Related Products

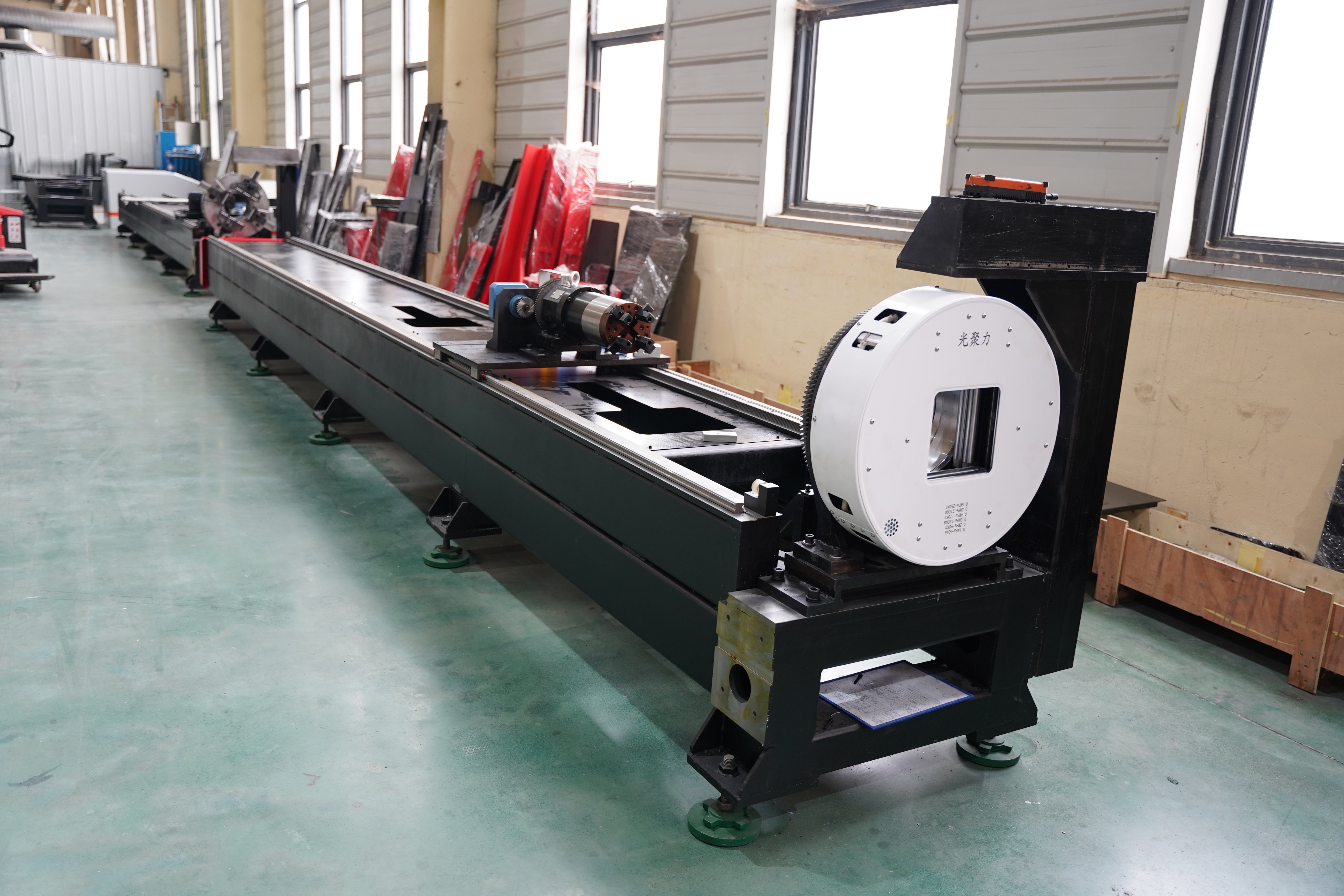

High strength pipe welding bed
The machine bed is welded from 10mm high-strength steel pipes with built-in reinforcement ribs, making the structure very stable. The entire bed is annealed to eliminate stress and will not deform for 20 years.

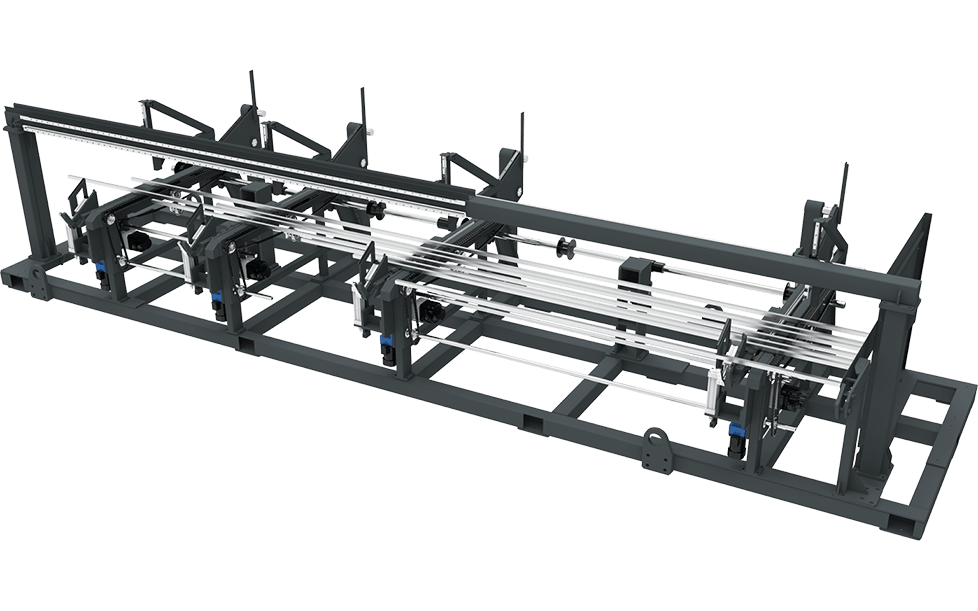

Automatic Loading and Unloading System
The machine can be equipped with a fully automatic loading and unloading system with a high degree of automation, saving labor and improving cutting efficiency. It can process round tubes, square tubes, rectangular tubes, angle steels, channel steels, etc.

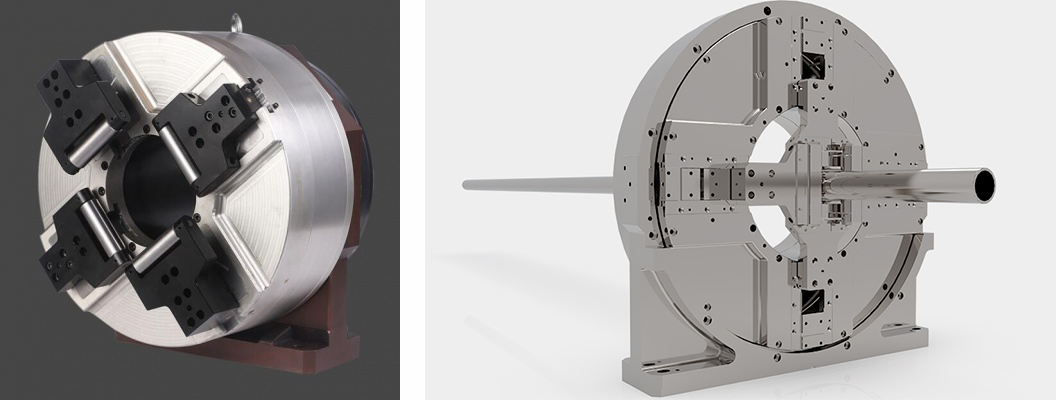

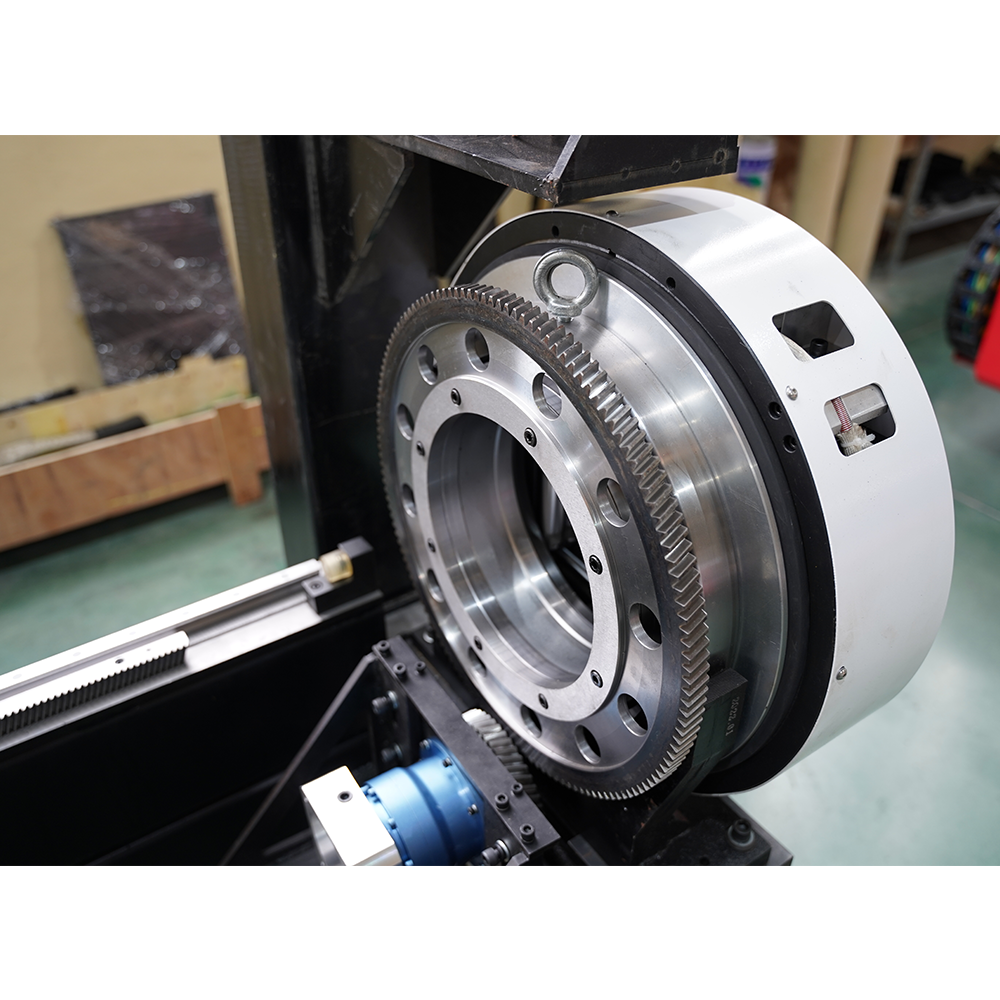

Intelligent dual pneumatic chuck
The chuck can accurately position and control torque, quickly and accurately clamp the thin tube without deformation, effectively prevent tube jumping, cut with high precision and efficiency, and achieve higher dynamic performance.

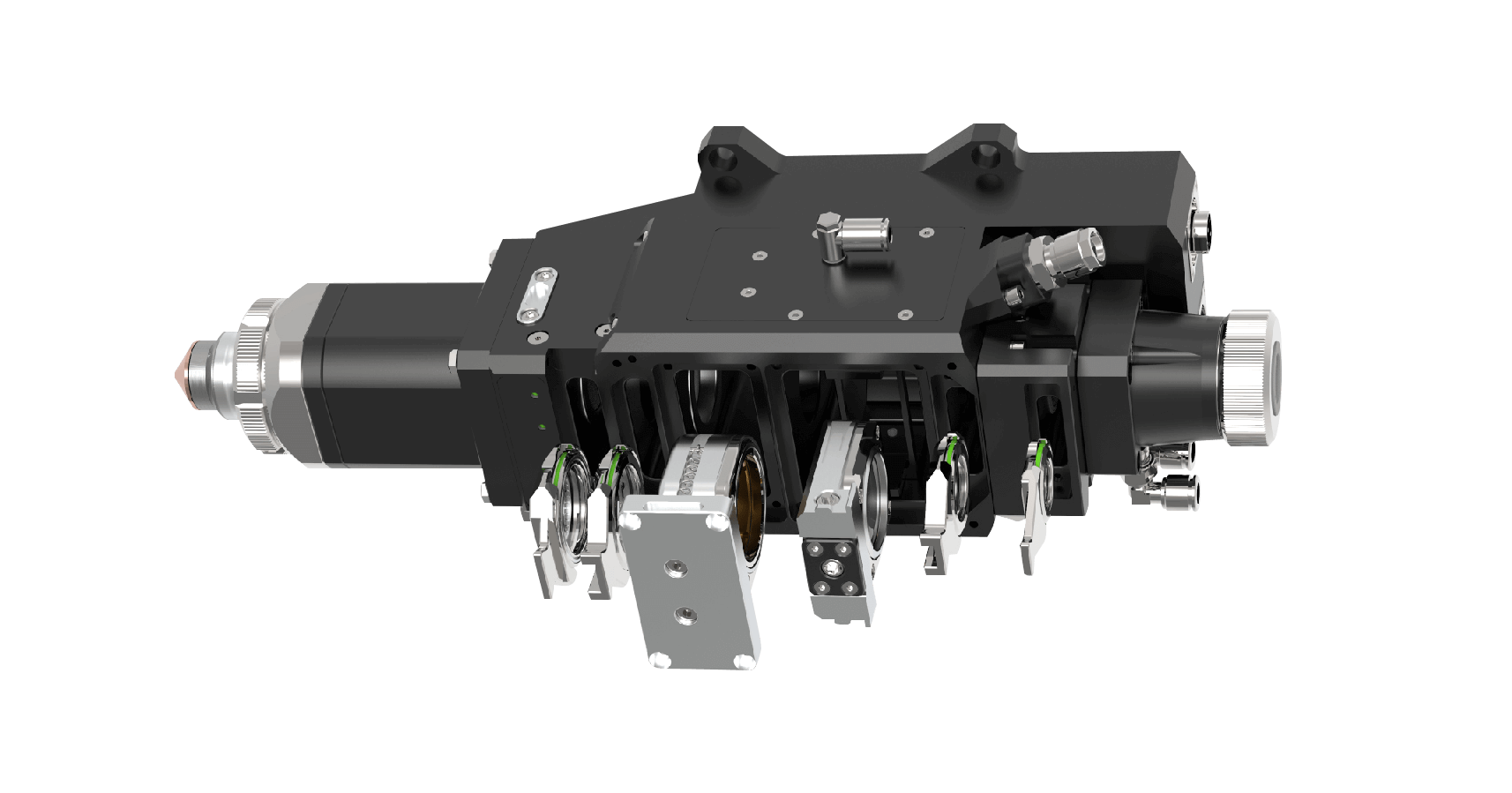

Precision tube laser cutting head
The precision cutting head can cut various special-shaped tubes and H-steel, I-beam, etc. with high precision. It is light in weight, fast in cutting speed, and improves cutting speed.
Technical Parameters
| Clamping range | Round Φ10mm-Φ350mm | |||
| Laser Power | 1000W-6000W | |||
| Reposition accuracy | 0.02mm | |||
| Maximum rotating speed | 150 r/min | |||
| Max.acceleration | 1.5G | |||

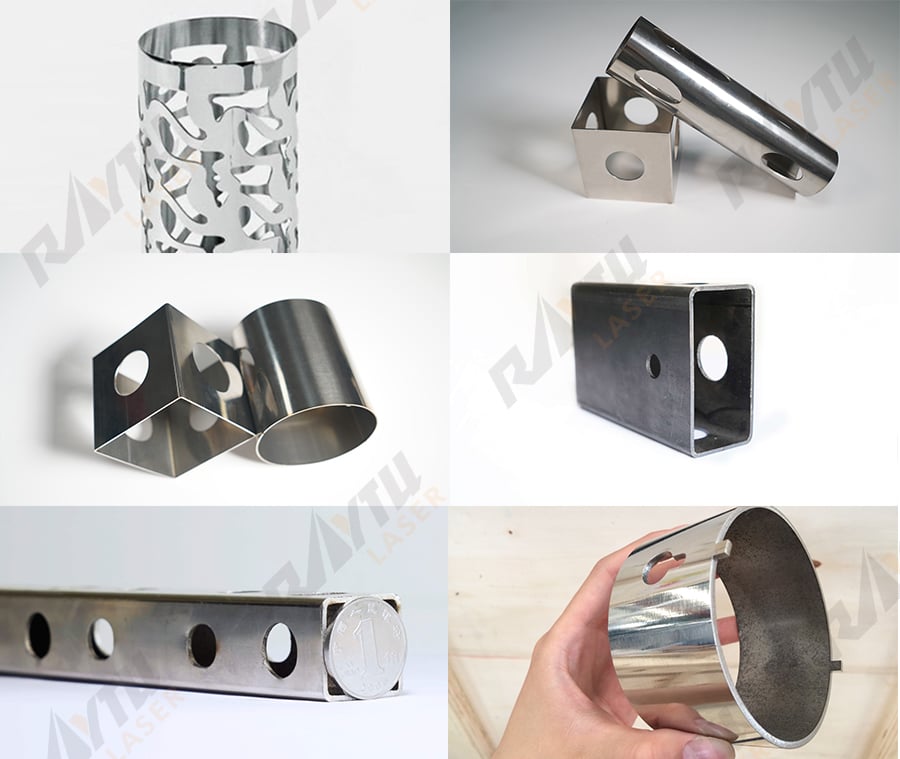

Cutting Sample
