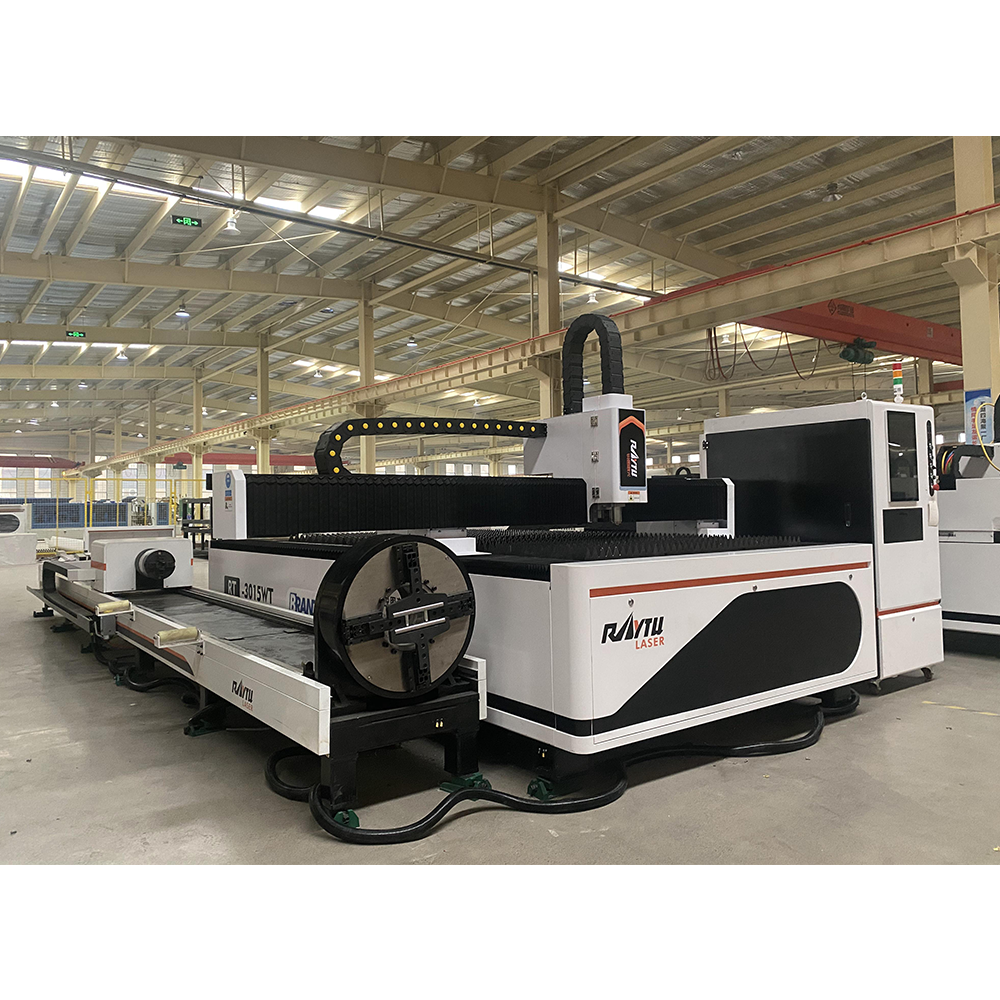

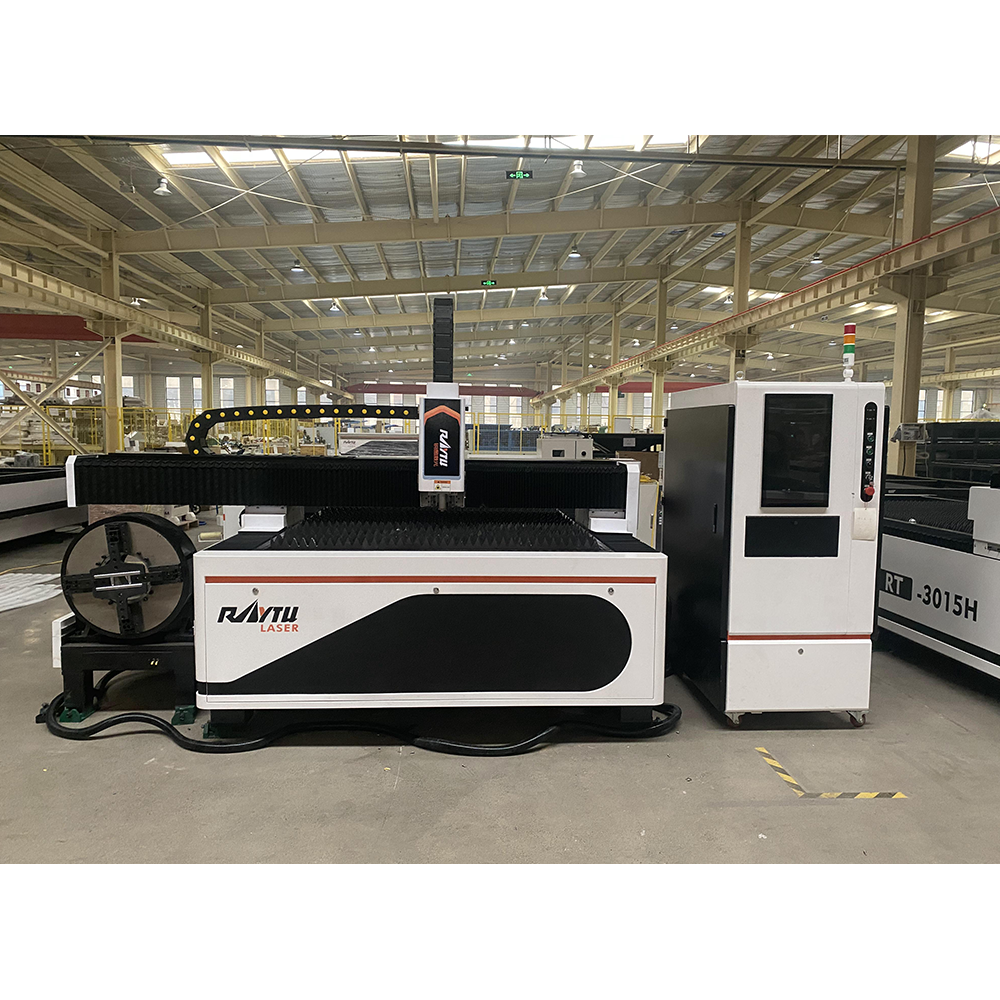

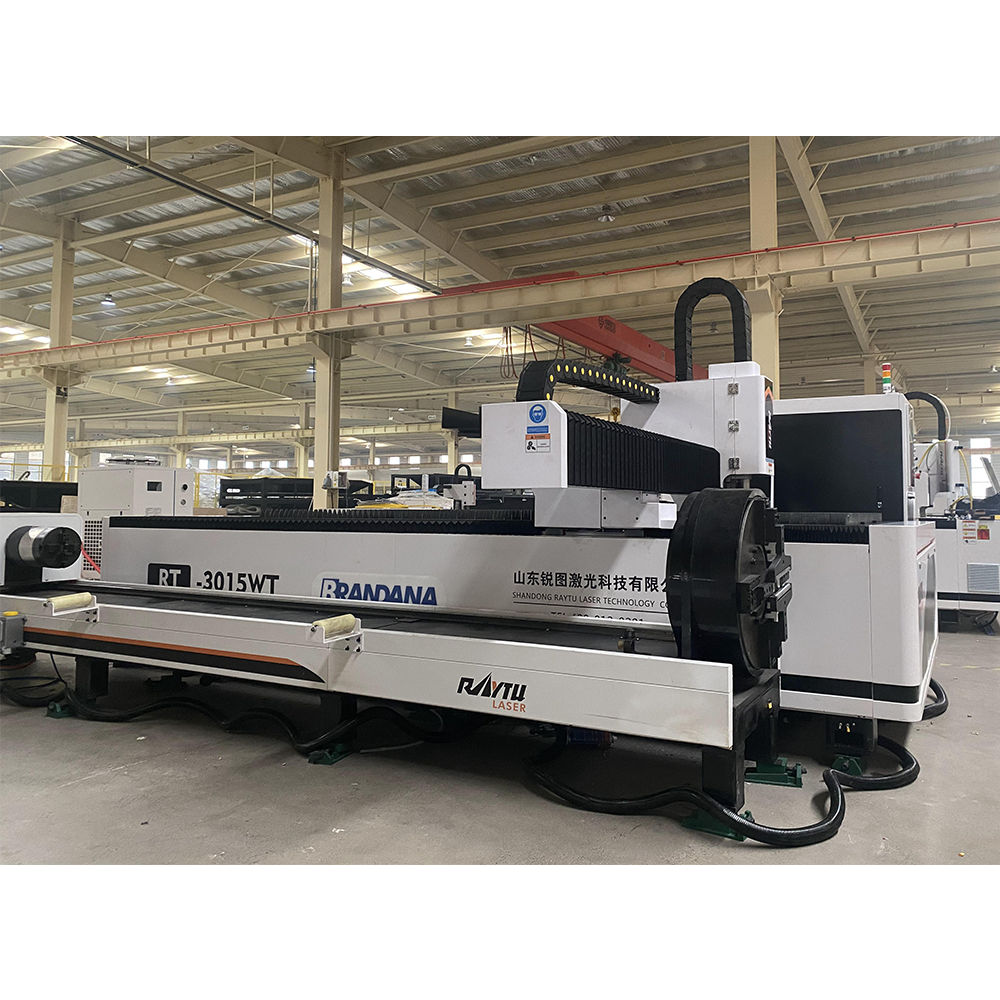

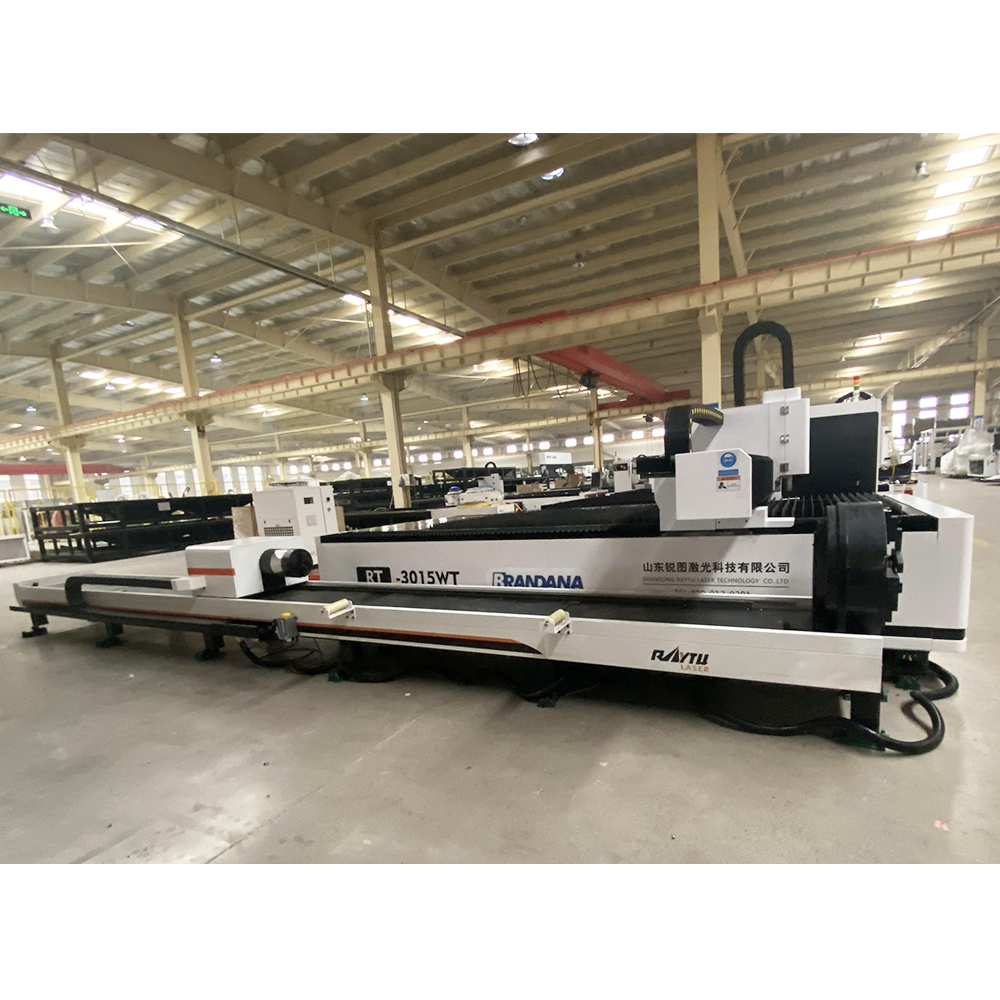

High Power Tube And Sheet Fiber Laser Cutting Machine
Raytu WT series is our open ultra-large format ultra-high power laser cutting machine, with a maximum machine size of 16m*2.5m and an adaptable power of 6KW-30KW. It can meet customers' needs for cutting large-format thick plates and metal tubes with fast cutting speed and high precision. It is the best choice for shipbuilding, aerospace and construction industries.
- Overview
- Technical Parameters
- Cutting Sample
- Related Products
Ultra-durable plate welded machine bed
The bed is welded from 12mm carbon steel plates and uses stress annealing technology to ensure the machine's structural stability and long-term high-performance operation.

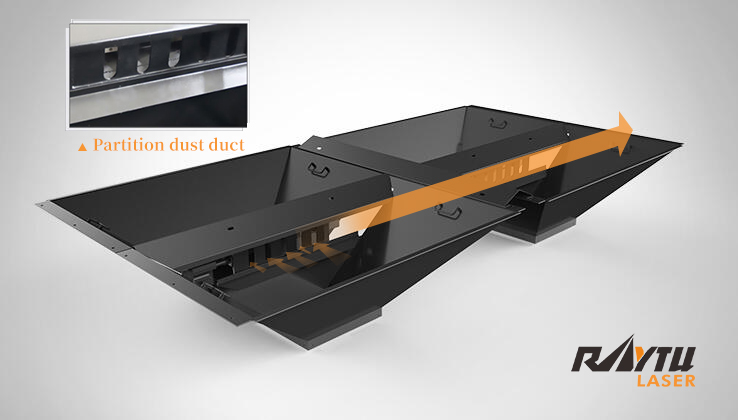

Intelligent zoned smoke exhaust system
The intelligent zoned smoke exhaust system consists of a segmented design of the cutting table and built-in ventilation ducts. Each section has a pneumatic exhaust port, a slag collection funnel and a pull-out tray for waste disposal. It effectively filters harmful gases and dust to ensure an environmentally friendly and pollution-free production process.

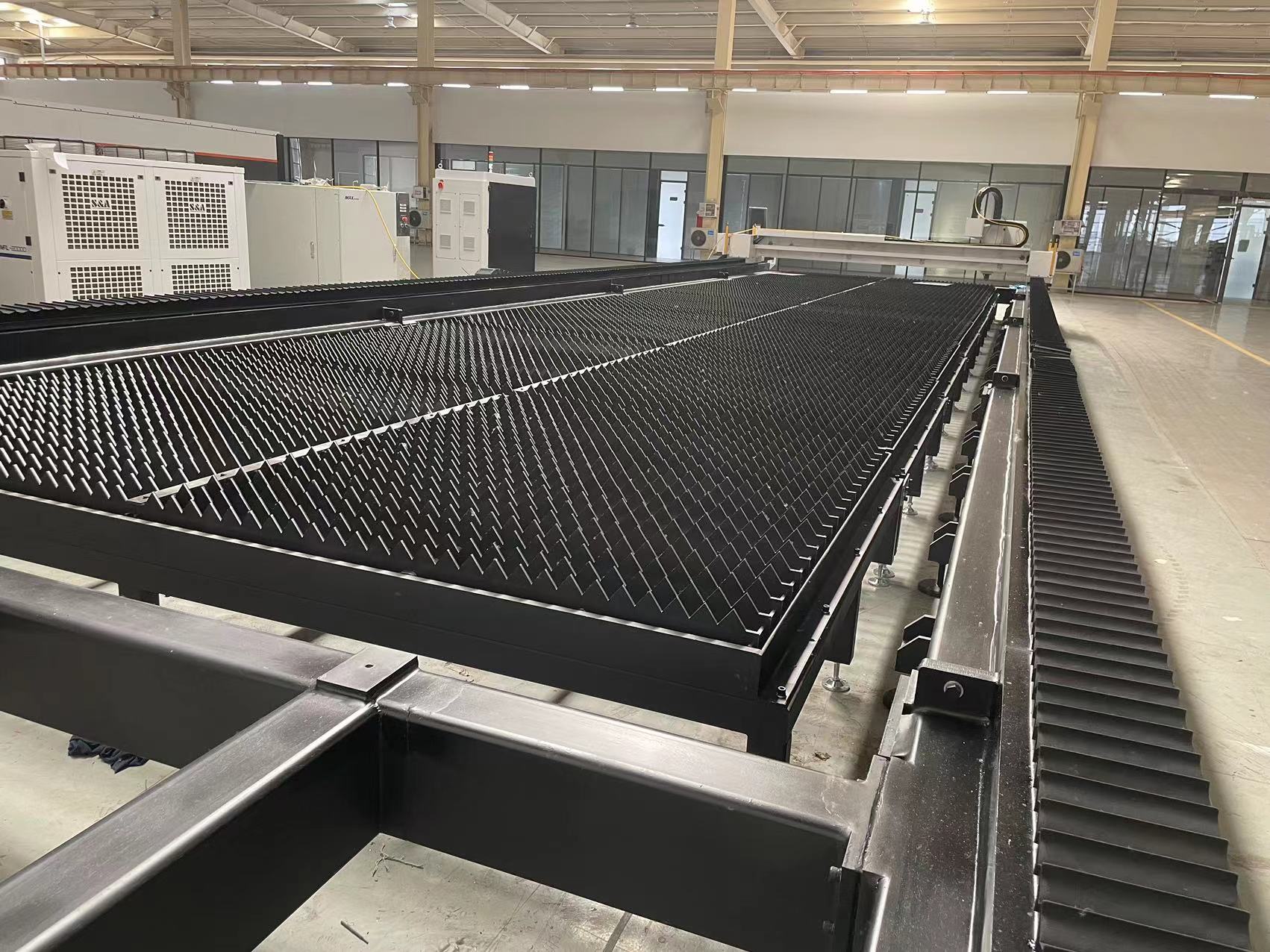

Segmented bed
The segmented bed supports customization of various sizes, and two annealings are performed to remove stress. The bed has high stability and ensures ultra-high cutting accuracy.

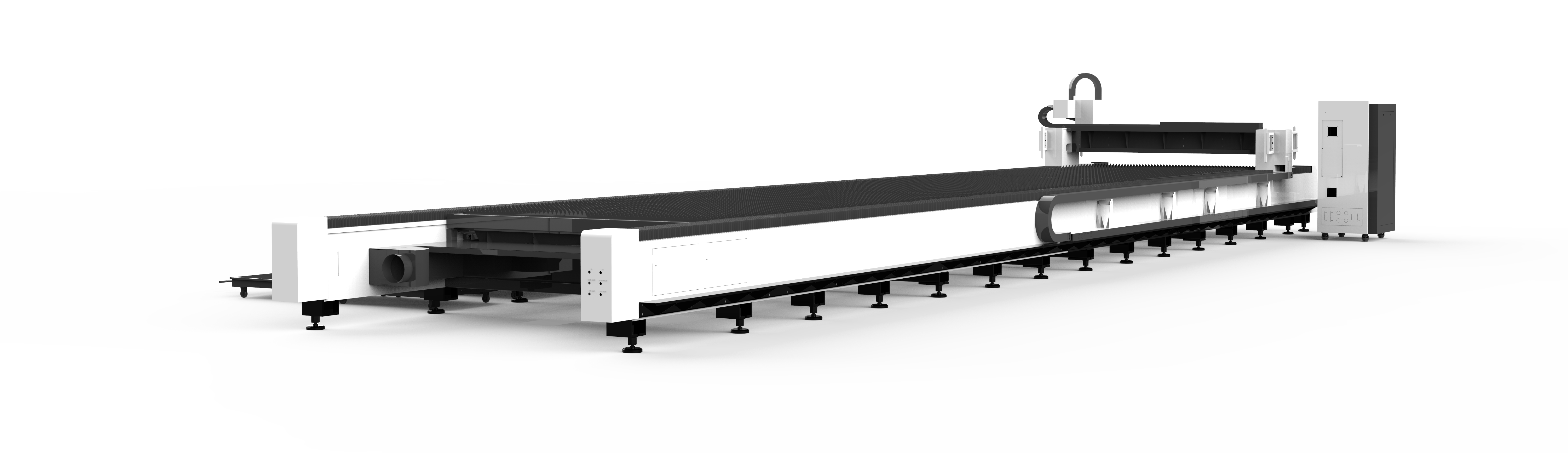

Extra large cutting Area
The S series can be customized with extra-large cutting platform sizes, and can cut plates up to 12 meters now, which can meet the cutting needs of most large factories around the world.
Technical Parameters
| Working area | 6000*2500mm | 8000*2500mm | 12000*2500mm | 16000*2500mm |
| Laser Power | 6000W-30000W | |||
| Reposition accuracy | 0.02mm | |||
| Max.running speed | 120m/min | |||
| Max.acceleration | 1.5G | |||
| Tube length | 3m/6m | |||
| Tube Size Range | φ10-φ225mm,□10- □225mm | |||
