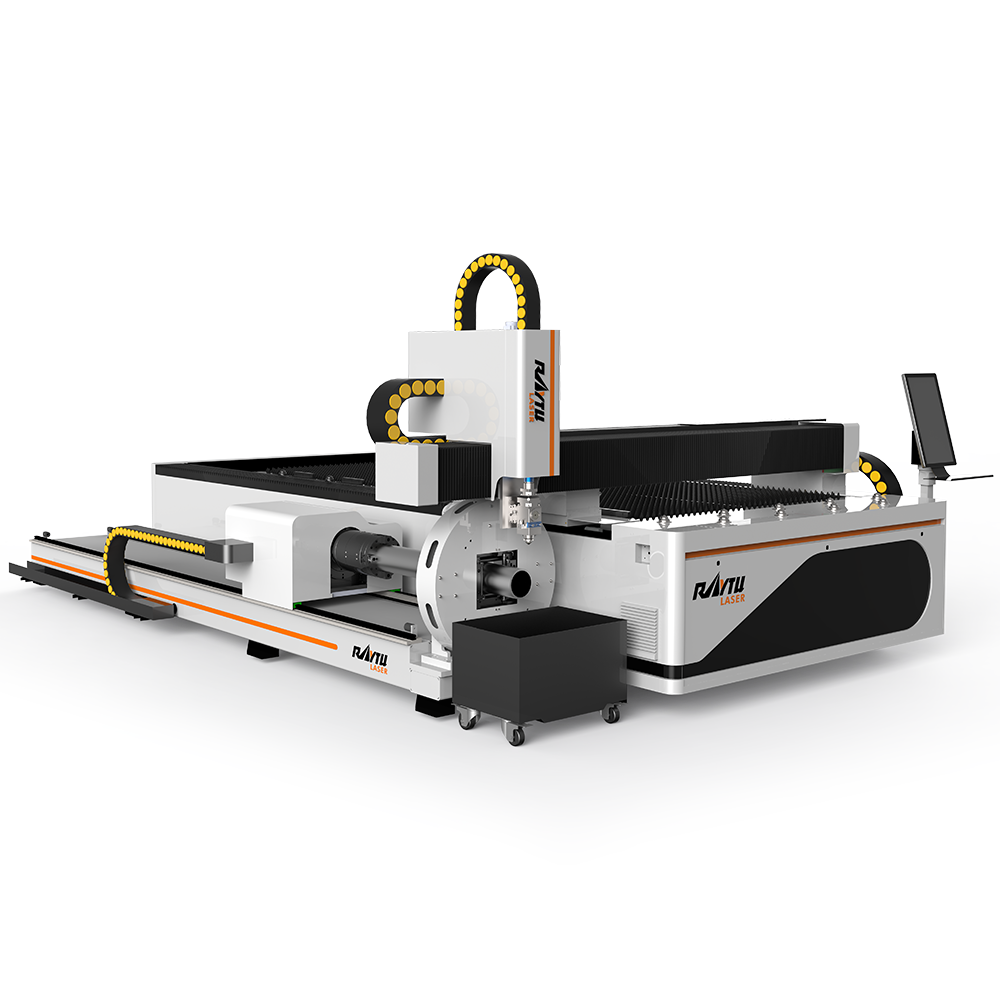

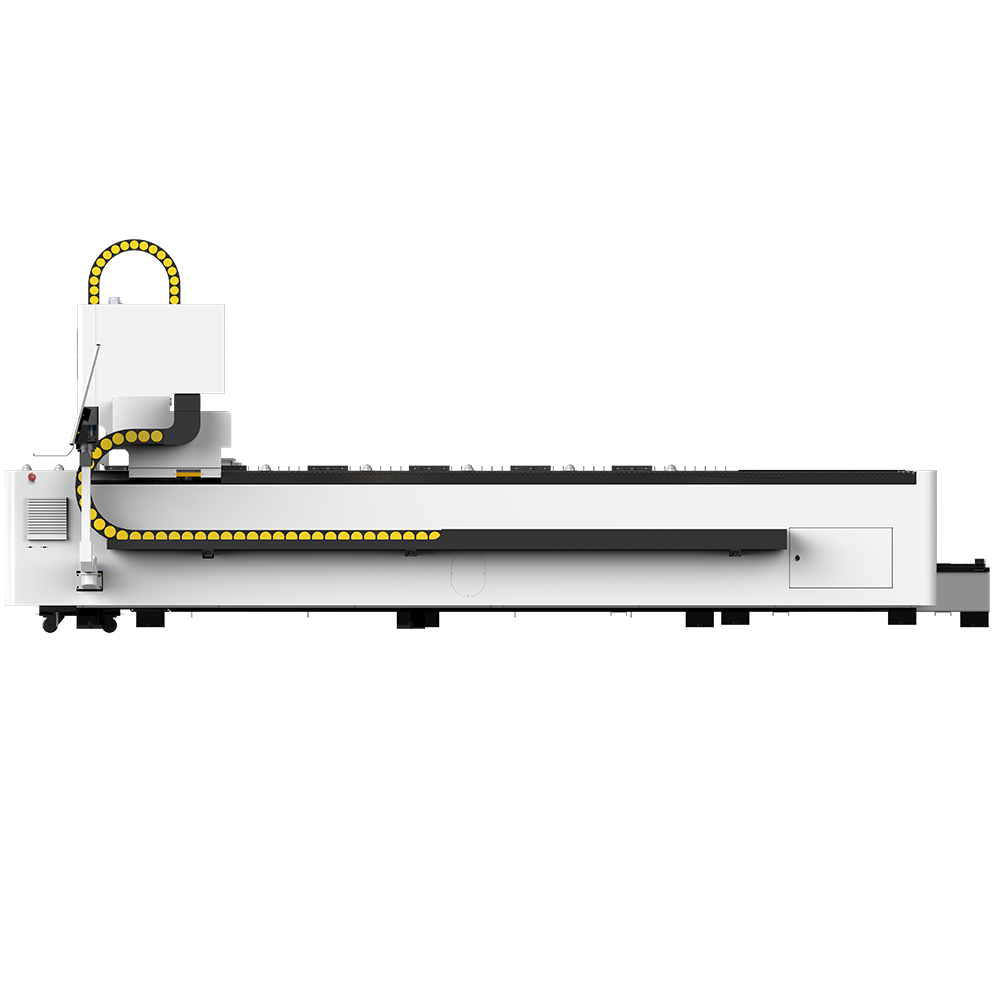

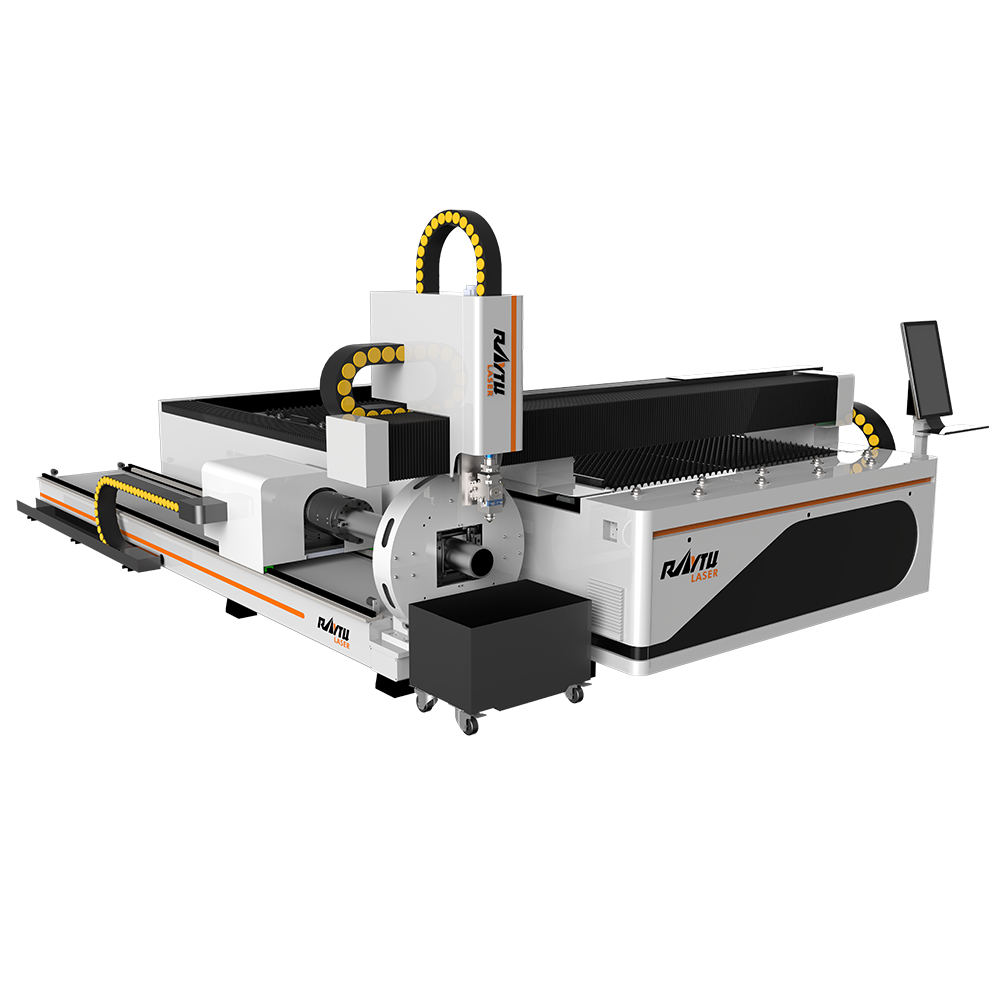

Open Type Tube And Sheet Fiber Laser Cutting Machine
Raytu Laser HT series is specially designed for customers who want to use one machine to cut plates and pipes. The power is adapted to 1-6KW; the open platform is convenient for installing the loading and unloading system; the chuck diameter can be selected as 160mm, 240mm or 350mm. The advantage of HT is that it can meet various cutting needs with less money and save factory space. In addition, the machine has a 2-year warranty and is CE and FDA certified.
- Overview
- Technical Parameters
- Cutting Sample
- Related Products

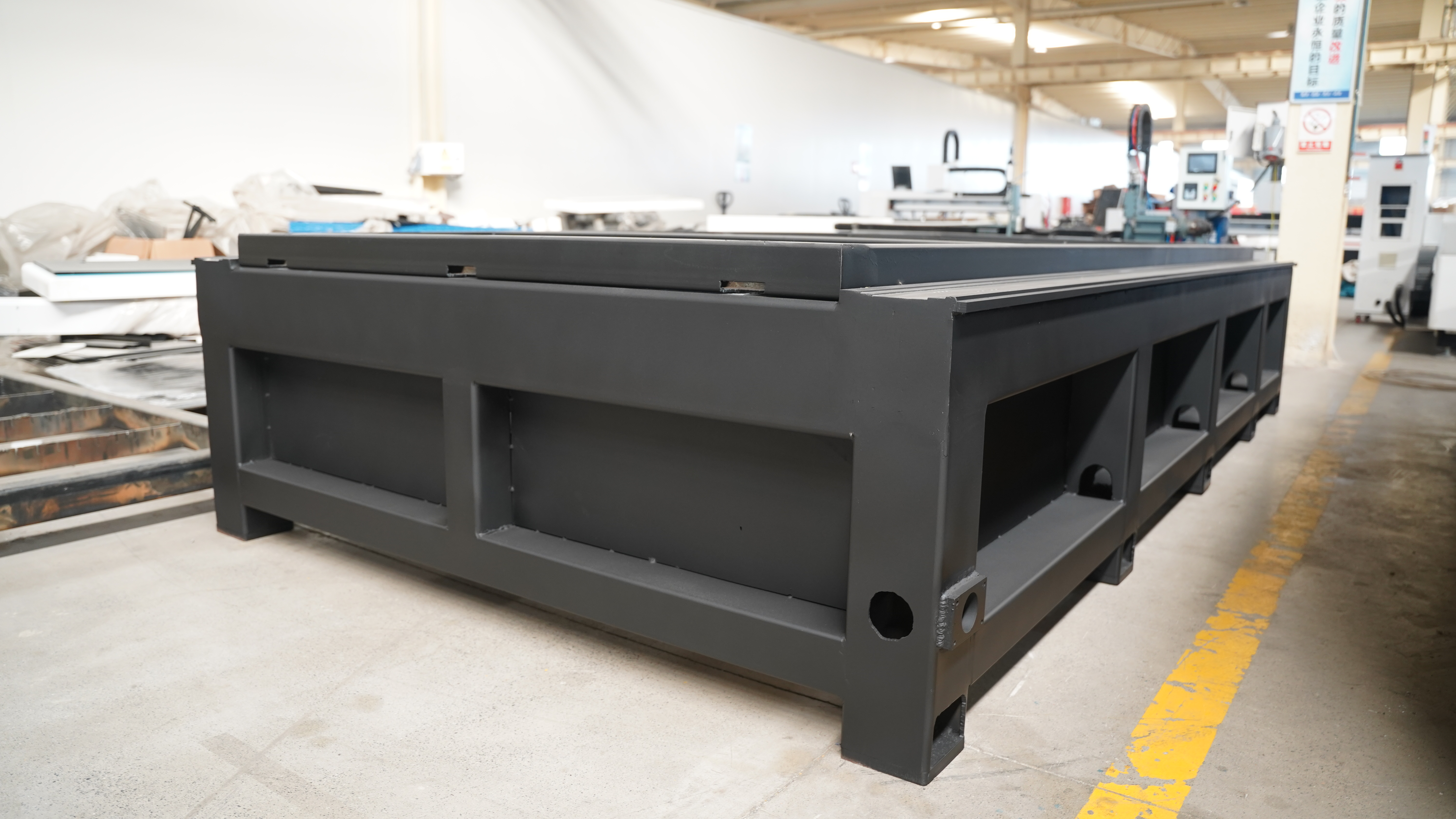

High strength pipe welding bed
The machine bed is welded from 8mm high-strength steel pipes with built-in reinforcement ribs, making the structure very stable. The entire bed is annealed to eliminate stress and will not deform for 20 years.

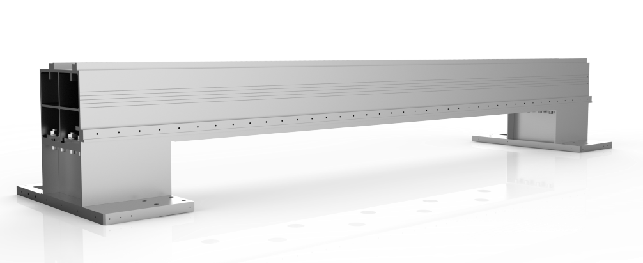

New aviation cast aluminum beam
Our aviation aluminum beams are lightweight, resistant to corrosion and oxidation, and have high rigidity and shock resistance,the rigidity level reaches T6, making the structure stable and cutting with high precision.
Waste oil recovery
The machine is equipped with guide rail and gear rack oil recovering function. The eco-friendly feature is designed for environmental protection, which is the first case in the laser cutting machine industry.
Technical Parameters
| Working area | 3000*1500mm | 4000*2000mm | 6000*2500mm | |
| Laser Power | 1000W-6000W | |||
| Reposition accuracy | 0.02mm | |||
| Max.running speed | 100m/min | |||
| Max.acceleration | 1.5G | |||
| Tube length | 3m/6m | |||
| Tube Size Range | φ10-φ225mm,□10- □225mm | |||

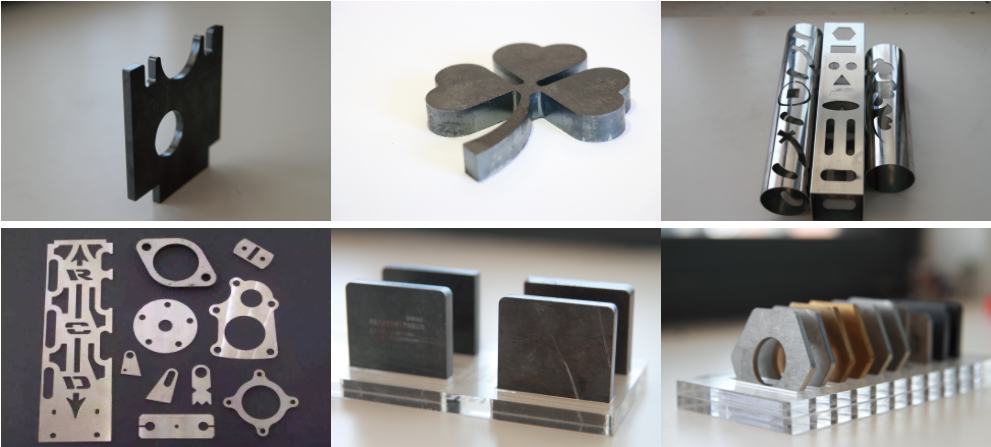

Cutting Sample
